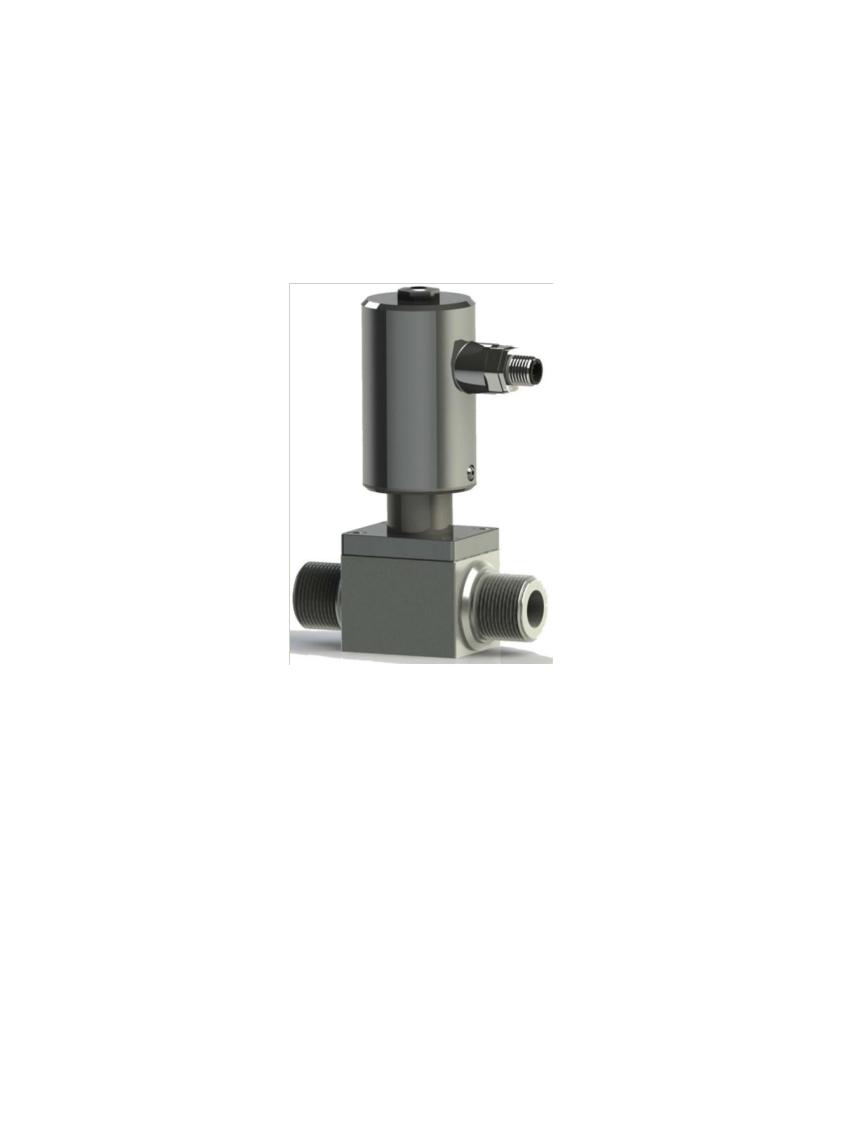

Misuratore elettromagnetico filettato
Principali caratteristiche tecniche:
Size: 10/15/20/25/32/40/50/65/80
Body material: PTFE coated Zincked steel
Sensor body: AISI 304
Lining: PTFE
Nominal pressure: PN16 (1600 kPa)
Vacuum resistance: 20 KPa absolute at 100 °C
Electrodes material: AISI316L
Connection: Threaded G UNI 338 or NPT
Connections material: Steel (PTFE lined)
Liquid temperature: -10…+100 °C)
Protection rate: Compact IP67
Power supply 18-30 V DC
Electrical connections M16 connectors (5 pins)
Execution Compact converter integrated
Display Blind execution
Input/Output: n. 2 digital output for volume /alarm n. 1 freely
programmable as input or output
Current output: 0/4-20 mA programmable (on request)
Temperature measure -10 – 100 °C included. Also available as 4-20 mA
Bi-directional measure yes
Velocity range 0,4 –10 m/s.
Empty pipe detection available as diagnostic: yes
Conductivity min. 50 microS/cm
Minimum velocity allowed 0,2 m/s
Accuracy +/- 1,5% of reading for flow /volume measure +/- 2 °C for
temperature measure
Data storage F-ram non volatile on power failure
Approval CE marked
